Timberline dimensions?

Fintan

New member
Joined
May 11, 2019
Messages
22
Reaction score
6
Points
3
Location
Zürich, Switzerland
Grill
Timberline 1300. Yet to be delivered.
Hi! I have looked everywhere and cannot find any information on the dimensions of the inside of the barrel. I do NOT mean WxD I mean distance between the grates 1. tier (rill and smoke) to 2. tier. 2. tier to 3. tier. 1. tier (smoke and grill) to 3. tier. Has anyone have a clue of what tose dimensions are? I want to build a rack for smoking sausages, so I need to know how high I can go. Thanks for any asssistance. Cheers
Fred


BlackBetsy

Member
Joined
May 7, 2019
Messages
50
Reaction score
7
Points
8
Location
Oostzaan Netherlands
Grill
Ironwood 650
Hi! I have looked everywhere and cannot find any information on the dimensions of the inside of the barrel. I do NOT mean WxD I mean distance between the grates 1. tier (rill and smoke) to 2. tier. 2. tier to 3. tier. 1. tier (smoke and grill) to 3. tier. Has anyone have a clue of what tose dimensions are? I want to build a rack for smoking sausages, so I need to know how high I can go. Thanks for any asssistance. Cheers
Fred

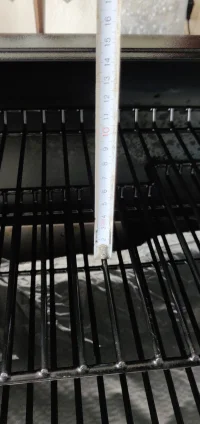

It,s only in centimeters


Attachments

  • IMG_20190512_105655.jpg
    2 MB · Views: 5
  • IMG_20190512_105619.jpg
    1.9 MB · Views: 5
  • IMG_20190512_105718__01.jpg
    2 MB · Views: 3
  • IMG_20190512_105718__01.jpg
    2 MB · Views: 4
OP
OP
F

Fintan

New member
Joined
May 11, 2019
Messages
22
Reaction score
6
Points
3
Location
Zürich, Switzerland
Grill
Timberline 1300. Yet to be delivered.
CM is fine. I live in Switzerland. which is which? Lets say from left to right? I can' really tell. Cheers


BlackBetsy

Member
Joined
May 7, 2019
Messages
50
Reaction score
7
Points
8
Location
Oostzaan Netherlands
Grill
Ironwood 650
1e= 10c Bottom rack on smoke
2e= 16c Bottom rack on grill
3e= 14c upper rack / top grill
4e= the same sorry

OP
OP
F

Fintan

New member
Joined
May 11, 2019
Messages
22
Reaction score
6
Points
3
Location
Zürich, Switzerland
Grill
Timberline 1300. Yet to be delivered.
Ok. so, if I got this right it would be 16 cm from 1. tier grill to 3. tier or is it 32 cm from 1. tier grill to 3.tier?


BlackBetsy

Member
Joined
May 7, 2019
Messages
50
Reaction score
7
Points
8
Location
Oostzaan Netherlands
Grill
Ironwood 650
1 Bottom rack on smoke (level 1) /upper rack 10cm.
2 Bottom rack on grill (level 0) / upper rack 16cm.
3 upper rack/top grill 14cm.

OP
OP
F

Fintan

New member
Joined
May 11, 2019
Messages
22
Reaction score
6
Points
3
Location
Zürich, Switzerland
Grill
Timberline 1300. Yet to be delivered.
Ok I know I might seem stupid. You are calling the 2. tier rack the upper rack and the 3. tier rack top rack?
So, from 1. tier rack on grill level to top rack (3. Tier) = 32 cm? Did I get that right?


Sodaking27

Active member
Grill Master of the Month
Joined
May 7, 2019
Messages
105
Reaction score
53
Points
28
Location
Maryland
Grill
BBQ070, BBQ155, IronWood 650
Ok I know I might seem stupid. You are calling the 2. tier rack the upper rack and the 3. tier rack top rack?
So, from 1. tier rack on grill level to top rack (3. Tier) = 32 cm? Did I get that right?
I believe he is giving you the dimensions of his Ironwood which only has 2 racks and not the dimensions of a Timberline which has 3 racks.


BlackBetsy

Member
Joined
May 7, 2019
Messages
50
Reaction score
7
Points
8
Location
Oostzaan Netherlands
Grill
Ironwood 650
No, the upper rack is the small one, the big rack the bottom one. The bottom rack has 2 levels (grill level) and the first level (smoke level).

Bottom rack lowest level (grill) /upper rack (small one)=16cm
Bottom rack lowest level (grill) / top grill = 30cm (roof).
Bottom rack on smoke (level 1) /upper rack = 10cm.
Bottom rack on smoke (level 1) /top grill = 24cm
(Roof)
I hope you understand it.
Reza


SPD656

Member
Joined
May 6, 2019
Messages
74
Reaction score
38
Points
18
Grill
Timberline 850
Does anyone know why the heck traeger doesn’t make a front folding shelf for the timberline...

OP
OP
F

Fintan

New member
Joined
May 11, 2019
Messages
22
Reaction score
6
Points
3
Location
Zürich, Switzerland
Grill
Timberline 1300. Yet to be delivered.
I don't know. Would like that and use it a lot. Makes for a compleately different work flow.

OP
OP
F

Fintan

New member
Joined
May 11, 2019
Messages
22
Reaction score
6
Points
3
Location
Zürich, Switzerland
Grill
Timberline 1300. Yet to be delivered.
Back to the dimensions for a sec. Can anyone give me the dimensions for the left side shelf? And the front shelf? Cheers Fred


RemE

Moderator
Staff member
Joined
Jun 10, 2019
Messages
845
Reaction score
415
Points
63
Location
Corona Del Mar, California
Grill
Timberline 850
Back to the dimensions for a sec. Can anyone give me the dimensions for the left side shelf? And the front shelf? Cheers Fred
Shelf Dimensions, looking from the front of the grill;
Left Shelf = 26cm W x 45cm D
Front Shelf= 87cm W x 11cm D narrow area, 18cm pellet side.
Right Wood Shelf on Pellet Hopper = 24cm W x 35cm D

Rack Spacing, with bottom rack in lowest position;
Bottom to Middle Rack = 17cm
Middle to Top Rack = 9cm
Top Rack to Chamber Top = 8cm

Rack Dimensions;
Top = 54cm W x 22cm D
Middle = 54cm W x 35cm D
Bottom = 54cm W x 41cm D

Hope that helps!
