Outdoor kitchen

Dougf

New member
Joined
Jun 15, 2020
Messages
1
Reaction score
0
Points
1
Location
Texas
Grill
Timberline 1300
I am building an outdoor kitchen and was wondering if anyone else has incorporated a timberline into their kitchen to achieve a built in look. I have seen some just sitting on a counter but I’m not sure how you would do this with the grease trap. Any ideas?


primeone

Administrator
Staff member
Joined
Feb 12, 2019
Messages
824
Reaction score
313
Points
63
Location
Austin, TX
Grill
Ironwood 650
Welcome to the forum @Dougf

I have not seen any Timberline built in, but hopefully someone else on the forum can help you out!


RemE

Moderator
Staff member
Joined
Jun 10, 2019
Messages
1,410
Reaction score
915
Points
113
Location
Corona Del Mar, California
Grill
Timberline 850
I would make some kind of rolling trolley board as a base for the grill. Remove the wheels and mount the grill legs to the trolley. Non-swivel wheels on the trolley, just facing fore-aft, for easy pulling the grill out of the cutout in the counter.

Alternately, you could remove the legs and attempt to mount the grill body on a very strong pull out shelf I suppose. Just need to consider heat from the grill in the planning. My TL850 weighs a TON, I was barely able to assemble and stand it up alone.

Do post up what you come up with!


RichM

New member
Joined
Sep 23, 2020
Messages
8
Reaction score
6
Points
3
Location
Ft Meyer, FL
Grill
Timberline 1300
I am currently in the process of an outdoor kitchen build that will incorporate a Timberline 1300. The kitchen is built and designed with a shelf system and the plan is to modify the legs so they only extend 2" below existing metal Skirting. and a drain valve built into the drain pan


RemE

Moderator
Staff member
Joined
Jun 10, 2019
Messages
1,410
Reaction score
915
Points
113
Location
Corona Del Mar, California
Grill
Timberline 850
I am currently in the process of an outdoor kitchen build that will incorporate a Timberline 1300. The kitchen is built and designed with a shelf system and the plan is to modify the legs so they only extend 2" below existing metal Skirting. and a drain valve built into the drain pan
Interesting, the timberline side drain pan is a bit "sloppy" in the way it drains into the pan. It works well but I do like to open that drawer and clean up the gasket and drain drawer cover. I would suggest you make provisions to be able to clean that area.

Do post up some pictures of your setup!


RichM

New member
Joined
Sep 23, 2020
Messages
8
Reaction score
6
Points
3
Location
Ft Meyer, FL
Grill
Timberline 1300
Agreed on the sloppy line up. Still expecting to have to pull unit out a couple time each year to give unit a going over. The shelf is built into the outdoor unit and has a custom built 12-gauge 316 stainless tray that the Timberline rests on.


RichM

New member
Joined
Sep 23, 2020
Messages
8
Reaction score
6
Points
3
Location
Ft Meyer, FL
Grill
Timberline 1300
Well, I was able to finish 90% of the outdoor kitchen build this weekend. Incorporated a Traeger Timberline into the build after a few modifications and addition of a Stainless Platform. A couple trim pieces to finish and it should be finished.


Attachments

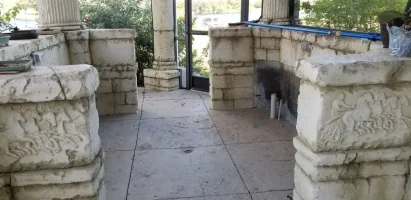

  • pre-build.jpeg
    159.7 KB · Views: 613
  • framed traeger side.jpg
    framed traeger side.jpg
    203.3 KB · Views: 587
  • minus traeger.jpg
    minus traeger.jpg
    217.9 KB · Views: 590
  • stainless tray in place.jpg
    stainless tray in place.jpg
    234.1 KB · Views: 676
  • Traeger side2.jpg
    Traeger side2.jpg
    214.6 KB · Views: 721
  • Traeger in place.jpg
    Traeger in place.jpg
    192.7 KB · Views: 719
  • outdoor kitchen.jpg
    outdoor kitchen.jpg
    207.9 KB · Views: 646

RemE

Moderator
Staff member
Joined
Jun 10, 2019
Messages
1,410
Reaction score
915
Points
113
Location
Corona Del Mar, California
Grill
Timberline 850
My God, that location could not be prettier. Welcome to Rich's meat castle!

I do wonder how super smoke is going to go there. Hopefully prevailing winds flow the right way.


Jmthornt

Member
Joined
Apr 21, 2020
Messages
32
Reaction score
20
Points
8
Location
Texas
Grill
Pro 575
Greatness, the view, the grill, the kitchen. Pure greatness!


Timmy

Well-known member
Joined
Jul 5, 2020
Messages
1,204
Reaction score
679
Points
113
Location
Iowa
Grill
Pro 780, Bronson 20 , Char grill gasser, Char griller modified offset, Blackstone 3 burner griddle
X2......wow


SpeedQuest

New member
Joined
Aug 25, 2020
Messages
15
Reaction score
2
Points
3
Location
Central FL
Grill
Timberline 1300 modding has begun
Awesome Stuff Rich! Up here in Tavares, FL and you have inspired me for sure!


cossackjoe40

New member
Joined
Jan 24, 2021
Messages
1
Reaction score
0
Points
1
Location
long island
Well, I was able to finish 90% of the outdoor kitchen build this weekend. Incorporated a Traeger Timberline into the build after a few modifications and addition of a Stainless Platform. A couple trim pieces to finish and it should be finished.
Wow, that is beautiful! May I ask how using the Traeger in the built in outdoor kitchen has worked out? I am putting a pool in this summer, and will be building a outdoor kitchen myself. Could you give me some advice on how you were able to achieve such a thing? Any info you could give would be incredibly helpful. Thank you!


safi88

New member
Joined
Feb 1, 2021
Messages
2
Reaction score
0
Points
1
Location
CA
Grill
Oven
I am building an outdoor kitchen and was wondering if anyone else has incorporated a timberline into their kitchen to achieve a built in look. I have seen some just sitting on a counter but I’m not sure how you would do this with the grease trap. Any ideas?

What could be the alternative?


traeger860

Active member
Joined
Jul 22, 2020
Messages
265
Reaction score
122
Points
43
Location
Hartford, CT to NSB, FL
Grill
Traeger Lil Tex Elite 22, Traeger Ironwood 650, Weber Genesis, Anova Precision Cooker
Well, I was able to finish 90% of the outdoor kitchen build this weekend. Incorporated a Traeger Timberline into the build after a few modifications and addition of a Stainless Platform. A couple trim pieces to finish and it should be finished.

This came out great. Well done.


RichM

New member
Joined
Sep 23, 2020
Messages
8
Reaction score
6
Points
3
Location
Ft Meyer, FL
Grill
Timberline 1300
Wow, that is beautiful! May I ask how using the Traeger in the built in outdoor kitchen has worked out? I am putting a pool in this summer, and will be building a outdoor kitchen myself. Could you give me some advice on how you were able to achieve such a thing? Any info you could give would be incredibly helpful. Thank you!
It has worked out Great. At this point we have used it on everything from a Turkey to cake and it is has operated perfectly. We are in the South Florida there is occasional power outage so it is hooked into the emergency power. The Stainless tray under it was fabricated from an industrial kitchen work table that was purchased on Amazon. It was raised two inches on risers to allow access to drain pan. We went with the 1300 over the 850 which has proven a good decision. Good luck


MrTru3

New member
Joined
Mar 17, 2021
Messages
5
Reaction score
0
Points
1
Location
Texas
Grill
Ironwood 650
@RichM love what you did on your setup. Is the 2” enough clearance for breathability? How about the space in the back? I keep reading horror stories about how the grill starts to rust, paint coming off, etc. from the bottom and back when placing the Traeger on the counter. I’m wanting this type of set up but very hesitant. Any help or suggestions you have are appreciated. Thanks!


RichM

New member
Joined
Sep 23, 2020
Messages
8
Reaction score
6
Points
3
Location
Ft Meyer, FL
Grill
Timberline 1300
Air movement has not been an issue. The Timberline's dual wall construction runs at a much lower exterior temperature. I keep a close eye on the surrounding surfaces (which are all masonry) and nothing even reaches a point that you cant place you hand on it.


MrTru3

New member
Joined
Mar 17, 2021
Messages
5
Reaction score
0
Points
1
Location
Texas
Grill
Ironwood 650
Air movement has not been an issue. The Timberline's dual wall construction runs at a much lower exterior temperature. I keep a close eye on the surrounding surfaces (which are all masonry) and nothing even reaches a point that you cant place you hand on it.
That’s good news! What type or brand of risers did you end up using? What are they made out of?


RichM

New member
Joined
Sep 23, 2020
Messages
8
Reaction score
6
Points
3
Location
Ft Meyer, FL
Grill
Timberline 1300
That’s good news! What type or brand of risers did you end up using? What are they made out of?
My first thought was to cut the legs down to two inches and have it ride on the new legs. I ruled that out because if I ever wanted to convert it back to a full unit I would have to by new legs. That said, I just began looking for metal blocks at the height that I wanted. Granger or other industrial supply houses would work well. I ended up using metal 4-gang electrical boxes that I filled the other edges to smooth them and panted to match the unit. Seemed to work well and be cost effective. If I still had budget money left I was going to have a local shop just weld me some boxes out of stainless to match the bottom tray.
