New shoes for 575

Gibster

New member
Joined
Aug 13, 2021
Messages
6
Reaction score
2
Points
3
Location
Rochester, MN
Grill
PRO 575

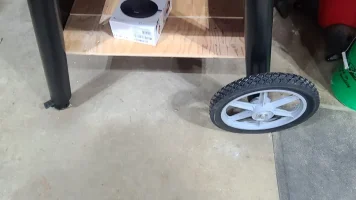

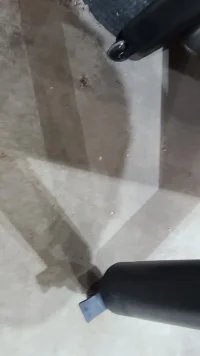

I upgraded the wheels on my 575 today. Ordered 14" wheels [Amazon] to replace the 7" originals. Had to have 14" to compensate for the office chair casters [Amazon] that inserted into the holes in the front legs. Qty 2 - ⅜" x 6" bolts, Qty 4 - ⅜" x ½" brass bushings to make ⅜" bolt ½" for 14" wheel. Used original cap nut and lock washer for reassembly.

MAXPOWER 335110 14" x 1.75" Spoked Plastic Wheel with Diamond Tread, Black

Latest update........

Ordered the wheels again and Amazon finally sent me the correct size of 3", the ones they send were 2.5".

Hirate 5 Pack Office Chair Casters (2 with Brakes, 3 Without), 3" Lockable Heavy Duty Swivel Caster Wheel Replacements for Hardwood Floor Carpet

This fixed the slight tilt....it is level on the top now!


DO NOT order the Shepherd Hardware 9807 3-Inch Swivel Stem Caster, Rubber Wheel, 7/16-Inch Stem Diameter, 175-lb Load Capacity
that I was going to try......the stem is WAY too long.

Sorry for the bad info


Attachments

  • 20210925_142350.jpg
    104.3 KB · Views: 75
  • 20210925_142333.jpg
    73.3 KB · Views: 41
Last edited:

MidwestSmoker

Well-known member
Joined
Jun 6, 2021
Messages
263
Reaction score
319
Points
63
Location
Toledo, Ohio
Grill
Traeger Pro 575
Nice! Can you provide the Amazon links for all the components? Right now I don't move my Pro 575 so I am fine with only 2 wheels, but that could change. Thanks.


Slimpicker

Ol' Timer BBQer
Staff member
Joined
Aug 3, 2020
Messages
2,479
Reaction score
2,156
Points
113
Location
stl mo
Grill
Pro 575 Bronze► OKJoe's Longhorn Combo► WeberQ Gasser ►Weber kettle► UDS ► Inkbird Sous Vide

CMTiger

Well-known member
Joined
Jun 2, 2021
Messages
371
Reaction score
288
Points
63
Location
Birmingham, AL
Grill
Traeger Pro 575 / Weber Genesis / Orion Cooker
I actually move mine away from the house each time I cook, but not certain how much something like this wouldn help. Maybe a good bit of the two smaller ones function well.

I think before I spent to much here I’d try and sale my 575 and just upgrade to the 780 and pick up more real estate. Mine was a gift so not complaining but I think the just extra $100 makes the 780 a much better value because it already has wheels and is bigger

T

TF_Member6575

Guest
Good Morning. Traeger touts their all terrain wheels for easy moving. Mine has been in the same spot since I bought 6 months ago. Although mine is on a deck in a corner where house meets garage. No wind there at all.


CMTiger

Well-known member
Joined
Jun 2, 2021
Messages
371
Reaction score
288
Points
63
Location
Birmingham, AL
Grill
Traeger Pro 575 / Weber Genesis / Orion Cooker
Good Morning. Traeger touts their all terrain wheels for easy moving. Mine has been in the same spot since I bought 6 months ago. Although mine is on a deck in a corner where house meets garage. No wind there at all.
Mine are pretty beefy and roll through the grass just fine.....at least did the one time I did when moving it from my garage to its forever home......the only problem with the 575 is that it has only two wheels and not the wheels themselves

OP
OP
Gibster

Gibster

New member
Joined
Aug 13, 2021
Messages
6
Reaction score
2
Points
3
Location
Rochester, MN
Grill
PRO 575
Dan-H is correct with the:

MAXPOWER 335110 14" x 1.75" Spoked Plastic Wheel with Diamond Tread, Black

The swivel wheels are:

Hirate 5 Pack Office Chair Casters (2 with Brakes, 3 Without), 3" Lockable Heavy Duty Swivel Caster Wheel Replacements for Hardwood Floor Carpet

The default on Amazon is the 2.5" caster...... The grill does have a slight drop from right to left with the 2.5" which is apparently the one I ordered, so the 3" is the better choice. Dunno know if or when I'll order different ones but for now it works just fine......... If one were to measure the depth of the caster stem hole I'm sure it is deeper than 7/8".

⌂ One could try the caster listed below but not for sure if the caster hole is deep enough......

Shepherd Hardware 9807 3-Inch Swivel Stem Caster, Rubber Wheel, 7/16-Inch Stem Diameter, 175-lb Load Capacity

This caster is 3", it's wider and it has a 1 3/8" stem and fits a 7/16" hole. Again, I don't know the depth of the stem hole.


⌂ The Bronze flange bearings I purchased at the local hardware store, but I found these on Amazon that should work just fine.

The Hillman Group 58101 Flange Bearing, Bronze 3/8 X 1/2 X 5/8 X 1-Inch, 4-Pack

All your trying to do is increase the axle size to the ½" on the wheel. Unfortunately, you can’t just drill the holes in the grill out to ½" because there are welded inserts in the leg that are 3/8” diameter. This means you need to have a 3/8” bolt 6 ½" long.

Regards,
Dale

MAXPOWER 335110 14" x 1.75" Spoked Plastic Wheel with Diamond Tread, Black

Latest update........

Ordered the wheels again and Amazon finally sent me the correct size of 3", the ones they send were 2.5".

Hirate 5 Pack Office Chair Casters (2 with Brakes, 3 Without), 3" Lockable Heavy Duty Swivel Caster Wheel Replacements for Hardwood Floor Carpet

This fixed the slight tilt....it is level on the top now!


DO NOT order the Shepherd Hardware 9807 3-Inch Swivel Stem Caster, Rubber Wheel, 7/16-Inch Stem Diameter, 175-lb Load Capacity
that I was going to try......the stem is WAY too long.

Sorry for the bad info
